Specifications System Type: 3D excavator guidance with real-time RTK and IMU integration GNSS Constellations: GPS, GLONASS, BeiDou, Galileo, QZSS Supported File Formats: *.LandXML, *.DWG, *.DXF, *.CAL, *.JXL, *.LOC Cloud Platform: iSite (remote data sync, troubleshooting, OTA updates) Receiver (CHCNav MC300) RTK Accuracy: H: 8 mm + 1 ppm RMS; V: 15 mm + 1 ppm RMS Ingress Protection: IP67 Operating Temperature: -22°F to 149°F (-30°C to +65°C) Weight: 2.45 lbs. Display (MCPad300) Screen: 10.1″ touch screen (1920 × 1200 px) Operating System: Android 14, 8-core CPU up to 2.2 GHz, 6 GB RAM + 64 GB storage Ingress Protection: IP67 Operating Temperature: -22°F to 140°F (-30°C to +60°C) Power: 7–36 V DC input Weight: 3.30 lbs. IMU Sensor (IS300) RMS Accuracy: Dynamic ±0.1°, Static ±0.05° Shock: 50G/ 11 ms Ingress Protection: IP69K Operating Temperature: −40°F to +167°F (−40°C to +75°C) GNSS Antenna (AT315) Ingress Protection: IP68 Gain: 40 ± 2 dB Noise: ≤2 dB Shock: 40G/ 11 ms Operating Temperature: −40°F to +167°F (−40°C to +75°C) Product Description CHCNav MCNAV TX73 is designed for demanding construction sites. The system gives operators full control of depth, slope, and alignment using advanced GNSS RTK receivers and IMU sensors. With instant bucket-tip feedback and real-time surface comparison, jobs finish faster, cleaner, and with fewer grade checks. The TX73’s powerful CAD-based 3D interface and color-coded maps let crews visualize progress directly in-cab. Operators can customize layouts, monitor cut/fill data, and switch effortlessly between 2D and 3D views. With broad attachment compatibility—including Engcon and Steelwrist tiltrotators—the TX73 adapts easily to complex projects. Its rugged hardware—featuring the MC300 receiver, IS300 IMU, and AT315 GNSS antennas—ensures reliability in harsh environments. In the Box Basic Model MCNAV TX73 Basic Excavator System - 8007010062 CHCNAV Installation     CPC-1Year Point One Nav 1 Year 1 User     iSite14 Benchmark iSite 1 Year Support & Data Super SIM Plan     3D Model MCNAV TX73 3D Excavator System CHCNAV Installation     CPC-1Year Point One Nav 1 Year 1 User     iSite14 Benchmark iSite 1 Year Support & Data Super SIM Plan     Brochures and Manuals MCNAV TX73 3D Guidance System Product Datasheet

Specifications System Type: Automatic 3D dozer control with hydraulic blade automation Positioning: Dual GNSS + IMU (100 Hz) Accuracy: ±2 cm (DO-Tech algorithm) Horizontal Accuracy (RTK): 10 mm + 1 ppm RMS Vertical Accuracy (RTK): 15 mm + 1 ppm RMS Display (Tablet): Screen: 10.1″, 1024 × 600 px, 750 cd/m² sunlight readable Operating System: Android 6.0.1, 4-core 1.5 GHz CPU, 2 GB RAM + 16 GB ROM Ingress Protection: IP65 Operating Temperature: -4°F to 158°F (−20°C to +70°C) Size/Weight: 3.30 lbs. GNSS Receiver: Full constellations: GPS, GLONASS, Galileo, BeiDou, QZSS RTK Accuracy: H: 10 mm + 1 ppm RMS; V: 15 mm + 1 ppm RMS Ingress: IP65 Operating Temperature: -13°F to +167°F (−25°C to +75°C) Weight: 4.40 lbs. GNSS Antenna: Gain: 40 ± 2 dB Noise Coefficient: ≤ 2 dB Shock: 50 g/ 6 ms Vibration: 5 grms (2–250 Hz) Ingress: IP68 Operating Temperature: -4°F to 158°F (−20°C to +70°C) IMU Sensor: Accuracy: Dynamic: ±0.3° ; Static: ±0.1° Shock: 50 g/6 ms Vibration: 5 grms (10–400 Hz) Ingress: IP67 Operating Temperature: -40°F to 185°F (−40°C to +85°C) Product Description The CHCNav TD63 Pro is a fully automatic 3D control system designed to enhance the precision, productivity, and consistency of earthmoving and fine-grading operations. Combining dual GNSS antennas with a 100 Hz IMU sensor, it achieves ±2 cm accuracy and precise blade control—regardless of machine position or operator experience. The result is a perfectly finished grade with minimal staking, reduced rework, and faster project completion. Powered by CHCNav’s DO-Tech algorithm, the TD63 Pro intelligently controls hydraulic flow to maintain grade accuracy at varying speeds and on any terrain. Designed with the operator in mind, the MCNAV control tablet features a clear, responsive interface that shortens the learning curve. Installation and calibration are straightforward—complete setup can be done in under six hours, with 30-minute calibration. The TD63 Pro supports a wide range of coordinate systems, radio protocols, and design file formats. Brochures and Manuals CHCNav TD63 Pro Automatic Control System for Dozers Product Datasheet

The Clamp-On Pallet Forks mount to most loader buckets without tools and have an easy on/off design for added convenience. This attachment can be adjusted with ease to fit any pallet width and features a built-in stake pocket for a 2×4 to be installed as an upright backstop. Key Features: Easy Mounting: Attaches to most loader buckets without the need for tools. Adjustable Width: Easily adjustable to fit any pallet width. Built-In Stake Pocket: Includes a stake pocket for a 2×4 to serve as an upright backstop. Convenient Design: Easy on/off design enhances operational efficiency. High Capacity: Designed for palletized material with a lift limit determined by fork or loader capacity. Specifications: Material: [Material not specified, please provide if available] Lift Limit: Determined by fork capacity or loader capacity, whichever is less Capacity: Based on no more than 1/2 load per fork and load no more than 1/2 way out on each fork Mounting: Fits most loader buckets Usage and Benefits: The Clamp-On Pallet Forks are designed for maximum convenience, allowing operators to mount them to most loader buckets without the need for tools. The easy on/off design and adjustable width make it perfect for a variety of pallet sizes, while the built-in stake pocket adds stability for lifting tasks. Ideal for handling palletized material, this attachment enhances efficiency and versatility on the job site. Warranty Information: Comprehensive 1-year warranty included. Shipping Information: Flat rate shipping based on your location. (Cost determined at checkout based on location)

The Demo-Dozer is a versatile skid steer attachment designed to replace multiple tools, streamlining demolition and construction projects. Its multifunctional design combines the capabilities of a general-purpose bucket, dozer blade, demolition grapple, clamshell bucket, log handler, and four-in-one bucket, making it an indispensable asset for professionals seeking efficiency and reliability. ​ Key Features: Multifunctional Design: Consolidates six attachments into one, reducing the need for multiple tools and attachment changes. ​ Robust Construction: Built with high-strength materials to withstand rigorous use in demolition and heavy-duty applications. ​ Removable Side Plates: Allows for adaptability in handling various materials and tasks. ​ Integrated Tool Receivers: Equipped with multiple tool receivers to enhance functionality and versatility.  Independent Hydraulic Cylinders: Features 2" bore by 10" stroke cylinders rated at 4,000 PSI, operating independently for precise control. ​ Protective Features: Includes recessed grease zerks and protective covers on cylinders and rods to minimize maintenance. ​ Universal Mounting: Compatible with standard skid steer quick-attach systems for easy installation. ​ Made in the USA: Proudly manufactured domestically, ensuring high-quality craftsmanship. ​ Specifications: Model Width Opening Weight Tool Receivers Dozer 60 61" 34-35" 1,015 lbs 2 Dozer 66 67" 34-35" 1,068 lbs 2 Dozer 72 73" 34-35" 1,136 lbs 4 Dozer 78 79" 34-35" 1,215 lbs 4 Dozer 84 85" 34-35" 1,290 lbs 4   Usage and Benefits: The Demo-Dozer is engineered for a wide array of applications, including demolition, material handling, land clearing, and construction tasks. Its multifunctional design allows operators to switch seamlessly between tasks such as tearing down structures, moving debris, handling logs, and grading surfaces, thereby increasing productivity and reducing the need for multiple attachments. The robust construction ensures durability, even in the most demanding environments, making it a cost-effective solution for professionals. ​ Warranty & Shipping: Structural Warranty: One Year structural warranty ensures confidence in your purchase. Convenient Shipping: Benefit from flat rate shipping on all orders, with costs determined at checkout based on your location.

Bigfoot 1200 XD Trencher High Flow: Your Trenching Revolution Introducing the Bigfoot 1200 XD Trencher High Flow, a state-of-the-art trenching attachment that's redefining efficiency and precision in the industry. With its patent-pending design, this high-flow model stands as a testament to trenching innovation, seamlessly integrating advanced technology with user-centric features. Innovative Features for Peak Efficiency: Crumber Bar Innovation: Begins its work right in the trench, streamlining your workflow and enhancing job efficiency. Cab-Visible Foot: The distinctive, visible foot design eliminates the need for manual spotters, directly aligning with the operator's perspective for precision trenching. Productivity-Enhancing Functionality: Enhanced Spoil Auger: A sizable spoil auger removes debris quickly, ensuring consistent digging depths and minimal turf disruption for high-productivity trenching. Adjustable Depth Control: With an adjustable skid foot, maintain consistent trench depths effortlessly, ensuring precise results every time. Flexibility and Ease of Use: Side-Shifting Frame: Offers the capability to trench close to permanent fixtures, adding versatility to tackle various project scenarios. Robust and Reliable: Leading Warranty Protection: Backed by an industry-leading warranty, rest assured your investment is secure with our commitment to quality. Specifications Tailored for Performance: Cutting Depth Mastery: Ranging up to 60 inches for deep, clean trench lines. Chain Width Selection: Customizable with options of 6", 8", 10", & 12" to match project requirements. Optimized Hydraulic Flow: Recommended flow of 28-45 GPM for consistent power. Powerful Motor: Fitted with a 6K BELL EATON motor, harnessing maximum pressure and flow rates for unrivaled trenching muscle. Warranty and Shipping 1-Year Manufacturer Warranty: Offering peace of mind with a comprehensive one-year warranty on your trencher. Flat Rate Shipping: All orders enjoy cost-effective shipping, with rates determined at checkout for convenience. Elevate your trenching capability with the Bigfoot 1200 XD Trencher High Flow. Commit to excellence and efficiency—make it part of your machinery arsenal today.

Description: The Digga Cement Mixer is a versatile and efficient attachment for your Digga Auger Drive (Auger Drive and frame mount sold separately). It is designed to mix a wide range of materials, from cement to fertilizer, with ease and precision. One of the key features of this mixer is its easy connection. Simply pin the cradle to your existing auger frame and add the mixer bowl, and you're ready to go. The mixer is also available for mini machines, making it suitable for a wide range of applications. The mixer is also maintenance-free, requiring no additional upkeep or servicing. It is manufactured using quality materials, ensuring that it is built to last and can withstand the demands of heavy-duty mixing tasks. Ideal for construction, landscaping and agriculture, this mixer is perfect for mixing cement, mulch, animal feed, and fertilizer. With its easy connection and maintenance-free design, it's a valuable addition to any professional's toolkit, allowing you to complete your job quickly and efficiently. Features: Easy Connection. Simply pin cradle to existing auger frame and add mixer bowl Cement mixing attachment to suits Digga auger drives and frames only. Also available for mini machines Maintenance free Manufactured from quality materials Ideal Use: Mixing cement, mulch, animal feed, fertilizer Warranty: 1 Year Structural Warranty Shipping: Flat Rate Shipping On All Orders (Cost Determined At Checkout Based On Location)

Description: The RC4 rock and earth auger combination bit by Digga is perfect for drilling in all ground conditions. Designed with tapered teeth, it's the ultimate all performance auger you want in your arsenal. No need to have two augers for different conditions. The RC4 comes complete with all-purpose tapered teeth and is capable of cutting a clean hole in soft earth and clay material, or effortlessly ripping through fracturable rock. RC4 teeth are easy to install and remove with Digga's ingenious knock in, knock out locking system which eliminates the need to use extra tools to remove your teeth.  Features: Double start, single carry flight configuration Shallow flight pitch for greater soil retention Heavy duty auger body Includes Pin, Clip, Teeth & Pilot Warranty: 1 Year Structural Warranty Shipping: Flat Rate Shipping On All Orders (Cost Determined At Checkout Based On Location)

Transform Your Drilling Experience with the Standard Flow Auger Drive Unrivaled Quality and Performance  Exceptional Material Quality: Crafted exclusively by Digga using the highest grade materials under stringent quality control, ensuring durability and long lasting performance.  Innovative Eaton Bell Motor Design: This unique design allows the gearbox to extend deeper into the digging hole, maximizing drilling depth without the need for extensions, reducing downtime, and minimizing maintenance. Key Features for Optimal Drilling  High Torque Gearbox: Our compact, Digga Manufactured gearbox delivers exceptional torque, enhancing your drilling capabilities.  Advanced Eaton Motor: Equipped with an integrated pressure relief valve, this motor design eliminates the need for bulky valve blocks and reduces potential leak points. Versatility and Ease of Use  Convertible to Screw Anchor Drive: Add our patented 'anti kickback valve' to transform this auger into a versatile screw anchor drive.  Complete Package: Comes with a 2" hex shaft, 87" hoses, quick disconnects, universal skid steer mount, and linkage for a comprehensive setup. Specifications Specs for all 4 models are shown in image gallery  Warranty and Shipping  5 Year Gearbox Warranty  3 Year Motor Warranty  1 Year Structural Warranty  Flat Rate Shipping: All orders are shipped at a flat rate, with costs determined at checkout based on location. Step into a world of unmatched drilling efficiency with our Standard Flow Auger Drive, the epitome of performance, quality, and cost effectiveness. Designed and manufactured by Digga, this skid steer auger attachment sets the standard in the industry.

The Dominator is a powerful and versatile tree and brush pulling attachment that is designed to handle even the toughest jobs. Its 1" thick AR400 steel jaws provide superior strength and durability, capable of withstanding the most demanding applications. With a dual cylinder design, each producing 33,000 lbs. of force, the Dominator is designed to quickly and safely clear trees, shrubs, fence lines, and even buried root balls. The Dominator has been field tested and has passed every test with flying colors, making it the ultimate tree and brush pulling attachment. Weighing in at over 1,340 lbs. with the grapple guard, the Dominator is built to be heavy-duty and efficient. The wiring harness for the Grapple Guard is included in the package, ensuring that it is ready to go right out of the box. We'll call you after you order to ask for the make and model of your machine. Additional cost needed for Bobcat (7 Pin) machines. Dominator & Grapple Guard Specs: 60” opening easily grasps large objects Jaws are 1” thick AR400 high strength steel Bolt-on AR400 steel root rippers and serrated sides 3/4” thick vertical jaw braces 3/4” thick upper and lower frame plates 4″x4″x3/8“ frame cross tubes. Twin 3.5”x8” cross tube welded cylinders Dual cylinders produce over 60,000 pounds of force Hydraulic cylinder guards built from 3/8” plate protects cylinders when digging or pulling. 2” diameter, CF 1045 main pivot pins Grease fittings on all pivot points Abrasive blasted and powdered coated. Dig with jaws open or closed. Includes 4780 PSI hoses and flat faced couplers Standard wiring harness is included (additional cost needed for Bobcat machines - 7 PIN) Warranty: 5 Year Structural Warranty Shipping: Flat Rate Shipping On All Orders (Cost Determined At Checkout Based On Location) **Current Lead Time for this product is 2-5 weeks**

   Dominator Tree Puller - Heavy-Duty Skid Steer Attachment for Tree and Post Pulling The Dominator Tree Puller is a high-performance attachment designed to tackle the toughest tree and post pulling tasks. Constructed with 1" thick AR400 steel jaws and featuring removable bolt-on root rippers, this puller provides the strength and versatility needed for demanding jobs in construction, landscaping, and agriculture. Key Features: Heavy-Duty Construction: Built with 1" thick AR400 steel jaws for maximum durability and strength. Large Opening: A 60" opening easily grasps large objects, making it ideal for pulling trees and posts of various sizes. Removable Root Rippers: AR400 steel root rippers are removable for flexibility in different working conditions. Protective Guards: Cylinder and hose guards protect vital components during operation. Easy Digging: Designed to dig with jaws open or closed, providing versatility in different tasks. Specifications: Weight: 1,020 lbs with the Cab Guard Dimensions: 60" opening Material: 1" thick AR400 steel jaws, 3/4" thick vertical jaw braces, 3/4" thick upper and lower frame plates, 4"x4"x3/8" frame cross tubes Hydraulic System: Twin 3.5"x8" welded cylinders, each capable of producing over 33,000 pounds of force Compatibility: Mounts are available for most loaders Usage and Benefits: The Dominator Tree Puller is designed to handle a variety of tasks, from pulling trees and posts to digging and ripping roots. Its robust construction and large opening make it suitable for heavy-duty applications, while the removable root rippers and protective guards ensure it can adapt to different working environments. The versatile design allows for efficient operation, reducing the time and effort needed to complete tough jobs. Optional Upgrades: 31" Cab Guard: Adds an extra layer of protection for the operator and cab. Available in three thicknesses: 1/4", 3/8", and 1/2". Grapple Guard: A powerful hydraulic grapple that mounts on the tree puller, providing additional gripping power and acting as a cab protector when in the upright position. Customer Testimonials: Jake T. from North Dakota: "The Dominator Tree Puller is fantastic. It handles Siberian Elm trees with ease, even in heavy clay soil." Mike S. from Texas: "This tree puller is a beast. The build quality is excellent, and it makes quick work of our toughest jobs." Warranty Information: The Dominator Tree Puller comes with a 5 year comprehensive warranty, ensuring your investment is protected and providing peace of mind with every purchase. Shipping Information: Enjoy flat rate shipping based on your location, ensuring straightforward and affordable delivery to your site. (Cost Determined At Checkout Based On Location)

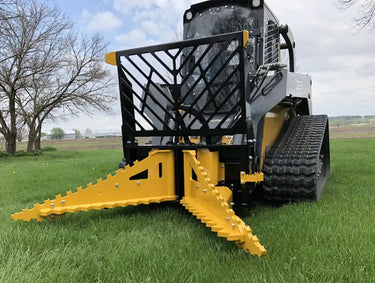

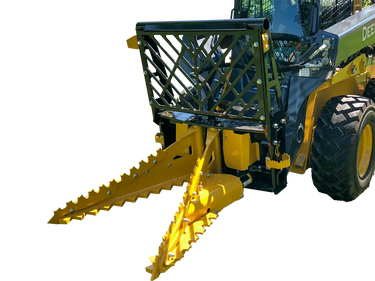

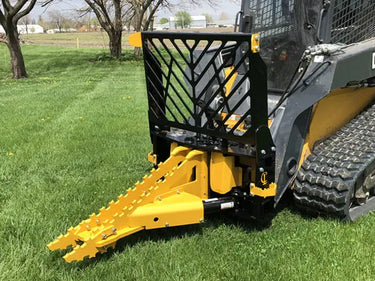

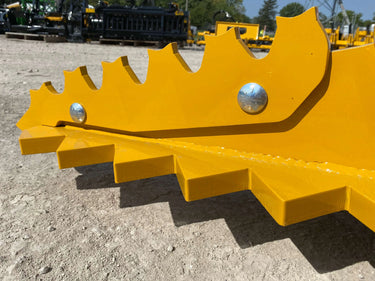

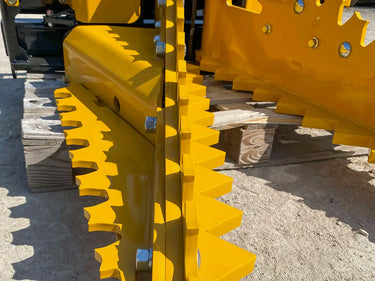

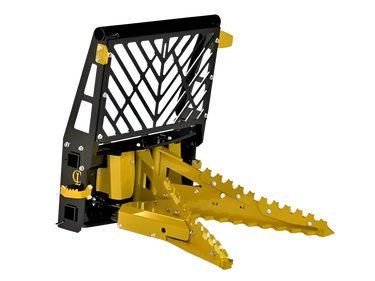

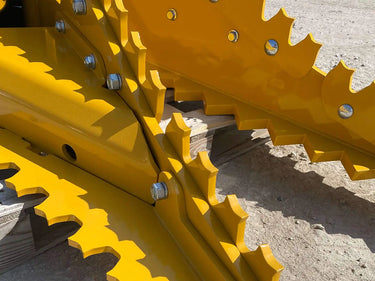

Dominator Tree Puller with 31" Cab Guard - Enhanced Safety and Performance The Dominator Tree Puller with 31" Cab Guard combines the robust tree pulling capabilities of the Dominator with the added safety of a cab guard. This attachment is perfect for professionals who need to protect their equipment and operator while performing heavy-duty tasks. Key Features: Enhanced Protection: 31" Cab Guard with formed uprights and a 3.5" SCH 80 pipe cross tube. Heavy-Duty Construction: Built with 1" thick AR400 steel jaws for maximum durability. Large Opening: A 60" opening easily grasps large objects. Removable Root Rippers: AR400 steel root rippers are removable. Protective Guards: Cylinder and hose guards. Specifications: Weight: 1,020 lbs with the Cab Guard Dimensions: 60" opening Material: 1" thick AR400 steel jaws, 3/4" thick vertical jaw braces Hydraulic System: Twin 3.5"x8" welded cylinders Compatibility: Fits most loaders Usage and Benefits: The Dominator Tree Puller with 31" Cab Guard is designed for tough pulling tasks while ensuring operator safety. The cab guard provides additional protection, making it suitable for environments where debris and branches could pose a risk. Customer Testimonials: Dwayne A. from Florida: "The Dominator Tree Puller with the cab guard is excellent. It gives me peace of mind knowing my equipment and I are protected." Pete R. from Oklahoma: "The added cab guard is a great feature. It makes a tough job safer and more efficient." Warranty Information: Comprehensive 5 year warranty included. Shipping Information: Flat rate shipping based on your location. (Cost Determined At Checkout Based On Location)

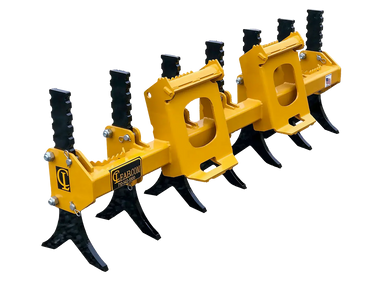

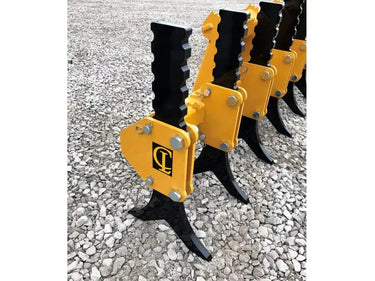

Upgrade your XR Ripper teeth to our Dual Directional Ripper Teeth. These teeth have a curves shank end on both sides giving you the ability to rip in both forward and reverse.  Made from high tensile AR400 Steel, these teeth will last a very long time.*Note: Price listed is per piece.  Shipping: Free when purchased with the XR Ripper

The Side Flow Bucket is a heavy-duty, multi-functional attachment for skid steer loaders, designed to efficiently handle and distribute light materials. With its dual side discharge openings, this innovative attachment allows operators to scoop, transport, and spread materials seamlessly, enhancing productivity and operational efficiency across various applications, including construction, agriculture, and landscaping. Key Features: Dual Side Discharge Openings: Enables material to be discharged from either the right or left side, providing flexible and efficient material handling. Multi-Functional Design: Functions as both a bucket for scooping materials and a spreader/feeder for distributing them. Triple Orbit Motors: Equipped with three orbit motors - one for the beater bar to prevent material bridging and two for the flexible track to control material flow. Adjustable Belt Speed: Features dual control valves to adjust belt speed, allowing precise control over material discharge. Durable Construction: Built with high-quality materials, including a 5/16” thick, 2-ply asphalt belt and a 5/8” cutting edge, ensuring long-lasting performance. Specifications: Part Number: 9000144 72” Standard Flow Side Flow Bucket Overall Width: 82 inches Overall Height: 30 inches Overall Depth: 42 inches Struck Capacity: 17.5 cu. ft. Heaped Capacity: 21 cu. ft. Motors: 4.9 cu.in. - Dual Motors Flow GPM: 15-20 GPM Belt: 5/16” Thick, 2-Ply Asphalt Belt Hydraulic Couplers: Flat Face Hydraulic Hoses: 1/2 inch PSI Min/Max: 2,500 PSI Bearings: 1” Pillow Block (2) Cutting Edge: 5/8” x 6” Mounting Plate: 5/16” Tensioners: Manually adjustable - (4) locations Bucket Thickness: 3/16” Wear Bars: 3/8” Weight: 1,000 lbs Usage and Benefits: The Side Flow Bucket is ideal for efficiently managing and distributing light materials in various environments. Its dual side discharge design and adjustable belt speed make it perfect for spreading and feeding tasks. The durable construction ensures it can handle tough jobs, while the multi-functional capability saves time and enhances productivity. This attachment is a valuable addition to any fleet, providing reliable performance for a range of material handling needs. Customer Testimonials: Jason M. from Iowa: "The Side Flow Bucket has significantly improved our material handling process. The dual side discharge feature is a game-changer!" David S. from Michigan: "We use this attachment for spreading mulch and feed on our farm. It's robust, versatile, and has made our work much more efficient." Warranty Information: The Side Flow Bucket comes with a 1-year structural warranty, ensuring your investment is protected. Shipping Information: Enjoy flat rate shipping based on your location, ensuring straightforward and affordable delivery to your site.

EZ Grapple Bucket - Versatile Attachment for Trees, Brush, and Roots The EZ Grapple Bucket is a robust and versatile attachment designed for handling trees, brush, and roots with ease. Built with high-strength AR400 steel, this bucket features a wide opening to grasp large objects and withstands the toughest tasks, making it an essential tool for construction, landscaping, and agricultural professionals. Key Features: High-Strength Construction: Made from AR400 steel for enhanced durability and long-lasting performance. Wide Opening: Features a 50" opening to easily grasp large objects. Robust Hydraulic System: Equipped with 2.5"x8" welded hydraulic cylinders with guarded rods for superior strength and protection. Versatile Design: Available in multiple widths (72", 81", and 90") to accommodate various job requirements. Heavy-Duty Tines: Upper and lower tines are 1/2" thick AR400 steel for optimal strength and durability. Protective Finish: Abrasive blasted and powder-coated to resist wear and corrosion. Specifications: Dimensions: 72" width: 9 tines, weight 960 lbs 81" width: 10 tines, weight 1030 lbs 90" width: 11 tines, weight 1060 lbs Tine Spacing: Standard 9" spacing Material: High-strength AR400 steel for tines and frame Compatibility: Fits most skid steers and compact track loaders Usage and Benefits: The EZ Grapple Bucket is designed to tackle a wide range of tasks, from clearing brush and roots to handling large debris. Its robust construction and powerful hydraulic system ensure it can handle the most demanding jobs with ease. The wide opening allows for efficient grasping of large objects, making it a versatile tool for various applications in construction, landscaping, and agriculture. Optional Upgrades: Hydraulic Hose Saver: Protects hydraulic hoses from damage during operation. Narrow Tine Spacing: Optional 4" lower tine spacing for handling smaller debris more efficiently. Customer Testimonials: John D. from Texas: "The EZ Grapple Bucket has significantly improved our efficiency on the job site. It's built tough and handles everything we throw at it." Mike S. from Colorado: "This grapple bucket is a game-changer for our landscaping projects. The build quality is outstanding, and it makes handling large debris a breeze." Warranty Information: The EZ Grapple Bucket comes with a 5 Year comprehensive warranty to ensure your investment is protected, providing peace of mind with every purchase. Shipping Information: Enjoy flat rate shipping based on your location, ensuring straightforward and affordable delivery to your site. (Cost Determined At Checkout Based On Location)

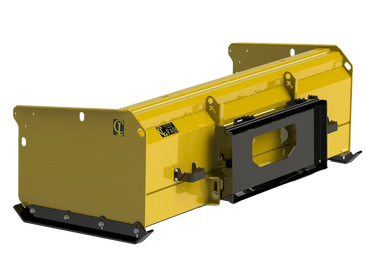

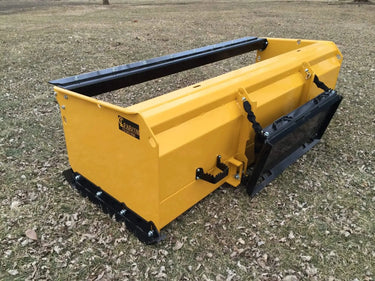

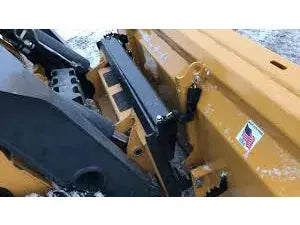

Make quick work of big winter jobs with the EZ snow pusher attachment. The high, wide body holds more snow per pass. Flotation and oscillation of the body keeps the pusher in contact with the ground allowing for snow removal on uneven surfaces. The floating mount puts less pressure on the skids so they last longer. It can float vertically 4″ and tilt front to back over 10 degrees. The body can also rotate side to side more than 10 degrees. Rubber edge works great on gravel drives – getting the snow and leaving the gravel Specs: Reversible, 1.5“ x 8” Rubber Cutting Edge Floating Mounting Plate (up to 10 degrees) Dimensions - 34" Tall & 47" Deep AR400, Abrasion resistant, steel skids Tough Powder Coat Finish Warranty: 5 Year Structural Shipping: Flat Rate Shipping On All Orders (Cost Determined At Checkout Based On Location)
