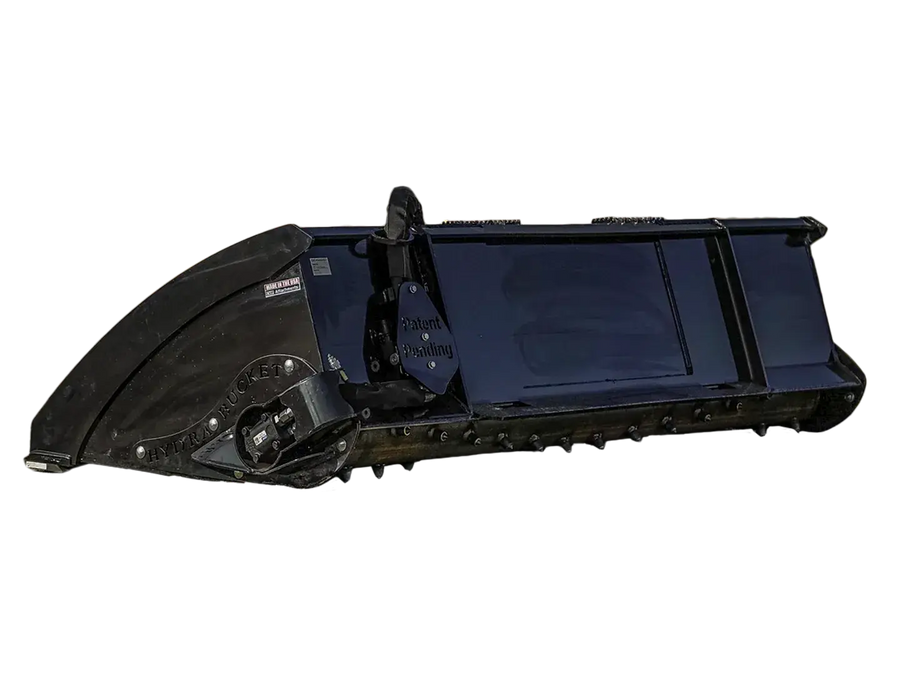

Hydra-Bucket Skid Steer Attachment
If you’re switching between a bucket and a power rake just to get a clean finish, you’re wasting time and fuel on every job.
The Hydra Bucket replaces both.
It cuts, levels, and finishes in one pass. Built specifically for contractors who want professional-grade results without running multiple attachments.
Whether you're prepping seedbeds, grading driveways, cleaning up fence lines, or conditioning soil, this attachment increases efficiency and reduces labor hours on every project.
Own it from $199/mo with financing available.
Does the Hydra-Bucket work in clay soil?
Yes, but adjust your passes to the ground. Drier soil clumps less. In wet soil or clay, take shallower passes rather than trying to work too much material at once. The rotor spins in both directions; reversing it can kick out a stuck clump.
Hydra-Bucket or Mini Hydra-Bucket?
The Hydra-Bucket comes in 66, 72, 78 and 84-inch widths and runs on low/standard flow, with a 24 GPM maximum. High flow is not recommended or warrantied. For a mini skid steer, compare the Mini Hydra-Bucket, which comes in 36 to 60-inch widths with a 20 GPM maximum. Check attachment weight, your machine's capacity and mounting compatibility as well as hydraulic flow before choosing.
For examples of the work each tool covers, read Hydra-Bucket jobsite preparation and the Hydra-Bucket dual-action guide. Compare dedicated leveling and blade-grading options in our grading and leveling attachments.
Key Features:
- Durable Construction: Made from high-strength AR400, AR200, and Grade 50 steel for maximum durability.
- Integrated Hydraulic Motor: Features a Char-Lynn hydraulic motor delivering 6,700 in/lbs of torque, housed inside the drum for ultimate protection.
- Built for Low/Standard Flow: Only standard flow required, 24GPM max. High flow is not recommended or warrantied, it’s designed to cut in low flow.
- Triple-Sealed Bearings: 5" oversized ball bearings are triple-sealed to guard against environmental damage.
- Carbide Teeth: Equipped with ultra-hard carbide cutter teeth on the drum for effective shredding and pulverizing.
- Dual Cutting Edges: Two cutting edges lead up to the drum, enhancing its material processing capabilities.
- Crossover Relief Valves: These valves help dampen shocks to the hydraulic system, ensuring smooth operation.
- Compact Design: The direct-drive motor design protrudes only 2.5" beyond the side plate, offering enhanced control and safety.
-
US Patent No. 9790658 B2
https://patents.google.com/patent/US9790658B2/en
Specifications:
-
Models and Dimensions:
- HB66: 66" width, 11.25 ft³ struck volume, 17.5 ft³ heaped volume, 870 lbs
- HB72: 72" width, 12.375 ft³ struck volume, 19 ft³ heaped volume, 915 lbs
- HB78: 78" width, 13.375 ft³ struck volume, 20.75 ft³ heaped volume, 960 lbs
- HB84: 84" width, 14.375 ft³ struck volume, 22.5 ft³ heaped volume, 1,015 lbs
Usage and Benefits: The Hydra Bucket is designed for various applications such as soil conditioning, seedbed preparation, and material leveling. It can effectively handle dirt, gravel, and other materials, making it a versatile tool for different tasks. Its ability to pulverize and shred materials on the go significantly enhances efficiency and reduces the need for multiple attachments.
Customer Testimonials:
- Ken G. from North Dakota: "We use our Hydra Bucket for grading and prepping fence lines. It's also great in the winter for grinding ice in the barnyard. It’s been a great investment."
- John D. from Texas: "The Hydra Bucket has significantly improved our efficiency on the job site. It's built tough and handles everything we throw at it."
Warranty Information: Comprehensive 1 year warranty included.
Shipping Information: Flat rate shipping based on your location. (Cost Determined At Checkout Based On Location)
Hydra Bucket specs by width
| Model | Width | Struck volume | Heaped volume | Weight |
|---|---|---|---|---|
| HB66 | 66 in | 11 1/4 ft³ | 17 1/2 ft³ | 870 lb |
| HB72 | 72 in | 12 3/8 ft³ | 19 ft³ | 915 lb |
| HB78 | 78 in | 13 3/8 ft³ | 20 3/4 ft³ | 960 lb |
| HB84 | 84 in | 14 3/8 ft³ | 22 1/2 ft³ | 1015 lb |
Swipe the table to compare options on a phone.
Source: published model spec sheets.
Max required flow is 24 GPM. No high flow required.
A soil conditioner and a bucket in one
If you've been looking at a skid steer soil conditioner, the Hydra-Bucket does that job and still works as a bucket. A carbide toothed drum is built into the bucket and driven by a Char-Lynn hydraulic motor rated at 6,700 in/lbs of torque. You can condition soil, prep seedbeds, grade driveways and clean up fence lines, then carry and spread material without switching attachments. It runs on standard flow (24 GPM max); high flow is not recommended or warrantied. It comes in 66, 72, 78 and 84 inch widths. For mini skid steers, see the Mini Skid Steer Hydra-Bucket (20 GPM max). Finance from $199/mo through our partner ElmBlue Capital (soft credit check, no impact to apply).
Which size fits your machine flow
| Auxiliary flow | Hydra option | Power rake option | Brush cutter option |
|---|---|---|---|
| Mini skid, up to 20 GPM | Mini Hydra Bucket, 20 GPM max | Power Rake Series 1, 20 GPM max | HD Closed Front Brush Cutter, low flow 8 to 15 GPM |
| Standard flow, about 18 to 30 GPM | Hydra Bucket, 24 GPM max | Power Rake Series 2, 20 to 30 GPM | HD Closed Front Brush Cutter, standard flow 18 to 23 GPM; Skid Steer Brush Cutter 72 in, 25 GPM |
| High flow, 30 to 40 GPM | Not compatible: 24 GPM max; high flow not recommended | Power Rake Series 3, 30 to 40 GPM | Skid Steer Brush Cutter 72 or 84 in high flow, 40 GPM |
Swipe the table to compare options on a phone.
Source: published model spec sheets.
See it work
American-Made. Contractor Tested.
Key Features
Heavy-Duty Construction
Built from high-strength steel to handle demanding jobsite conditions day after day.
Fast Attachment
Universal quick-attach system connects in under two minutes. No tools required.
1-Year Manufacturer Warranty
Ships from USA
Ships direct from our US warehouse. Freight delivery to your door.
Machine Compatibility
Fits most skid steers with a universal quick-attach system including Bobcat, CAT, Kubota, John Deere, Case, Takeuchi, and New Holland. Not sure about compatibility? Contact us and we'll confirm before you order.
Contact Us to Confirm →You May Also Need
This attachment has completely transformed the way our crew handles site prep. Solid build quality, connected in minutes, and it hasn't missed a beat after three months of daily use.
Mike A.
Frequently Asked Questions
The Hydra-Bucket replaces two attachments, a bucket and a power rake, in one pass. It cuts, levels, and finishes in a single pass over the ground. It's built for seedbed prep, driveway grading, fence line cleanup, and soil conditioning without switching attachments mid-job.
The Hydra-Bucket runs on standard flow. Check your operator's manual for your machine's rated output. Contact us if you're unsure whether your machine is compatible before ordering.
The Hydra-Bucket comes in 66-inch, 72-inch, 78-inch, and 84-inch cutting widths to match your machine size and job requirements.
It's built from AR400, AR200, and Grade 50 high-strength steel with a Char-Lynn hydraulic motor producing 6,700 in/lbs of torque, housed inside the drum for protection.
Yes. Financing is available from $199/mo. Visit our financing page to apply. The process takes just a few minutes.
Yes, it mounts on a universal skid steer quick-attach plate compatible with Bobcat, CAT, Kubota, John Deere, Case, Takeuchi, New Holland, and most other major brands.
A power rake only rakes. The Hydra Bucket is a heavy duty bucket with a carbide toothed drum in the heel, so it conditions ground and carries material.
