Benchmark Supply F8 Rover Surveying Package | i89-RSV
Specifications
- Channels: 1408
- Constellations: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
- RTK Initialization: Typically < 10 seconds
- RTK Accuracy: H: 8 mm + 1 ppm RMS; V: 15 mm + 1 ppm RMS
- IMU Tilt Compensation: Up to 60°
- Internal UHF Radio: 1W (410–470 MHz), range up to 8 km (optimal conditions)
- Battery Life: Up to 16.5 hours
- Communication Interfaces: Bluetooth, Wi-Fi, NFC
- Ports: USB Type-C, external antenna port
- Ingress Protection: IP68
- Shock Resistance: 2 m pole drop on concrete
- Operating Temperature: -40°F to 149°F (-40°C to +65°C)
Product Description
The Benchmark Supply's F8 Rover Surveying Package is a complete field-ready RTK solution for surveyors who need precision, speed, and flexibility in demanding environments.
The F8 GNSS receiver (Innovation by CHC, Performance for You) featuring 1408 channels and advanced iStar 2.0 technology for robust signal tracking across all satellite constellations, even in obstructed environments. Designed with dual cameras, the F8 enables visual stakeout and AR-based navigation, streamlining workflows in topographic, construction, and mining surveys.
Equipped with a high-speed 200Hz auto-IMU, the F8 offers tilt compensation up to 60° with minimal accuracy loss, reducing setup time and improving productivity on sloped terrain. The built-in 1W UHF radio supports RTK corrections up to 8 km in optimal conditions, and with NTRIP compatibility and SIM support, users can work reliably in any field configuration.
Included in this rover package is an 8" Active5 Android tablet pre-installed with LandStar 8 software, a modular survey app with MetaCAD engine and cloud connectivity for seamless jobsite management, and one-year subscription of Control Point Corrections TrueRTK (powered by Point One Navigation) for centimeter-level accuracy. Rugged accessories like a carbon fiber pole, topo shoe, clamp and bipod complete the package.

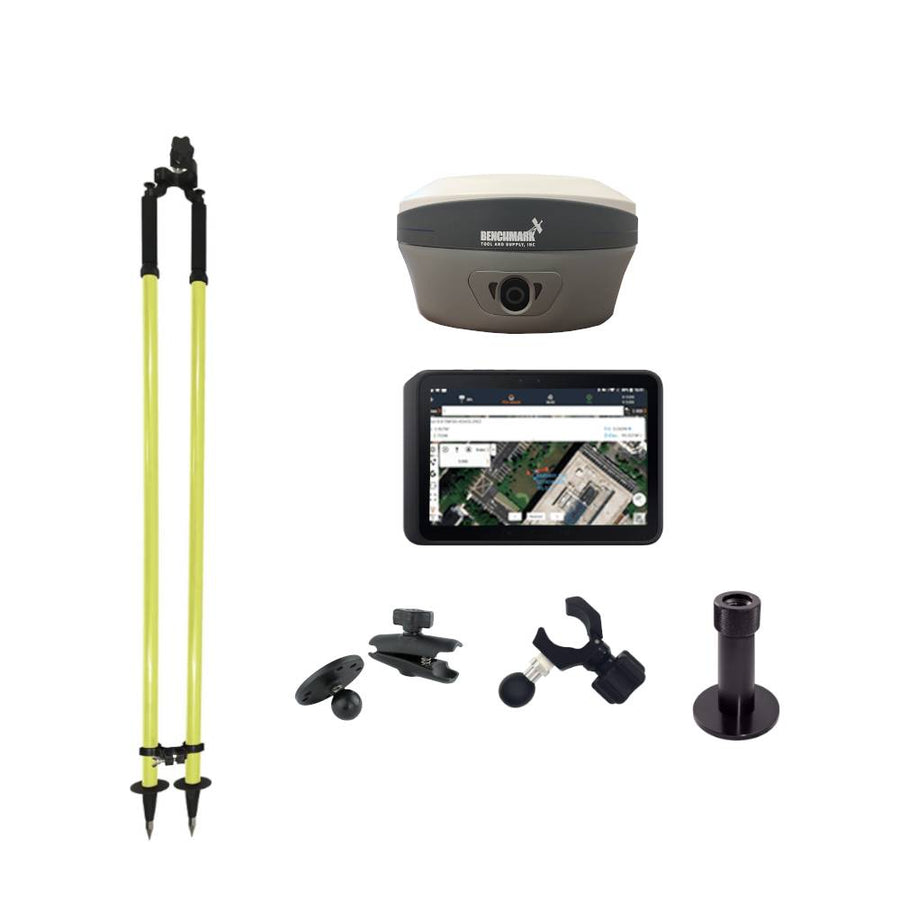

In the Box
- (1) F8 GNSS Receiver
- (1) 8" Active5 Tablet
- (1) SitePro Pole Clamp w/ Ball and Socket (10-52160)
- (1) Socket Arm (RAM-B-103U)
- (1) LandStar 8 App
- (1) Tiger Supplies Wide Base Topo Shoe
- (1) Seco Thumb-Release Bipod - Fluorescent Yellow
- (1) Unicontrol Tablet Holder 8'
- CPC TrueRTK (1 Year Subscription)
- iSite 1 Year Support & Data Super SIM Plan
- Tablet Power Bank Kit
